gammu-settings.h File Reference
#include <gammu-wap.h>
#include <gammu-limits.h>

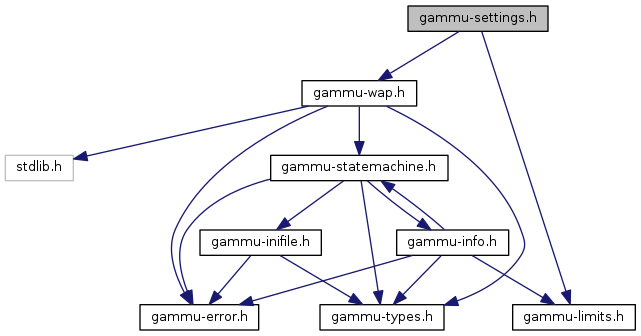

Include dependency graph for gammu-settings.h:

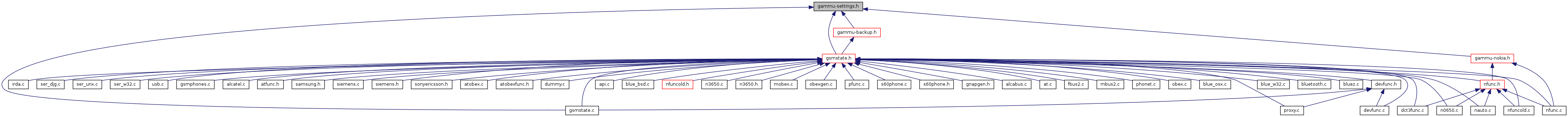

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct  GSM_SyncMLSettings

struct  GSM_ChatSettings

struct  GSM_Profile

struct  GSM_FMStation

struct  GSM_GPRSAccessPoint

struct  GSM_Locale

struct  GSM_Profile_PhoneTableValue


Enumerations

enum  GSM_ResetSettingsType {
  GSM_RESET_PHONESETTINGS = 1, GSM_RESET_USERINTERFACE, GSM_RESET_USERINTERFACE_PHONESETTINGS, GSM_RESET_DEVICE,
  GSM_RESET_FULLFACTORY
}

enum  GSM_Profile_Feat_Value {
  PROFILE_KEYPAD_LEVEL1 = 1, PROFILE_KEYPAD_LEVEL2, PROFILE_KEYPAD_LEVEL3, PROFILE_KEYPAD_OFF,
  PROFILE_CALLALERT_RINGING, PROFILE_CALLALERT_BEEPONCE, PROFILE_CALLALERT_OFF, PROFILE_CALLALERT_RINGONCE,
  PROFILE_CALLALERT_ASCENDING, PROFILE_CALLALERT_CALLERGROUPS, PROFILE_VOLUME_LEVEL1, PROFILE_VOLUME_LEVEL2,
  PROFILE_VOLUME_LEVEL3, PROFILE_VOLUME_LEVEL4, PROFILE_VOLUME_LEVEL5, PROFILE_MESSAGE_NOTONE,
  PROFILE_MESSAGE_STANDARD, PROFILE_MESSAGE_SPECIAL, PROFILE_MESSAGE_BEEPONCE, PROFILE_MESSAGE_ASCENDING,
  PROFILE_MESSAGE_PERSONAL, PROFILE_VIBRATION_OFF, PROFILE_VIBRATION_ON, PROFILE_VIBRATION_FIRST,
  PROFILE_WARNING_ON, PROFILE_WARNING_OFF, PROFILE_AUTOANSWER_ON, PROFILE_AUTOANSWER_OFF,
  PROFILE_LIGHTS_OFF, PROFILE_LIGHTS_AUTO, PROFILE_SAVER_ON, PROFILE_SAVER_OFF,
  PROFILE_SAVER_TIMEOUT_5SEC, PROFILE_SAVER_TIMEOUT_20SEC, PROFILE_SAVER_TIMEOUT_1MIN, PROFILE_SAVER_TIMEOUT_2MIN,
  PROFILE_SAVER_TIMEOUT_5MIN, PROFILE_SAVER_TIMEOUT_10MIN
}

enum  GSM_Profile_Feat_ID {
  Profile_KeypadTone = 1, Profile_CallAlert, Profile_RingtoneVolume, Profile_MessageTone,
  Profile_Vibration, Profile_WarningTone, Profile_AutoAnswer, Profile_Lights,
  Profile_ScreenSaverTime, Profile_ScreenSaver, Profile_ScreenSaverNumber, Profile_RingtoneID,
  Profile_MessageToneID, Profile_CallerGroups
}

enum  GSM_DateFormat {
  GSM_Date_DDMMYYYY = 1, GSM_Date_MMDDYYYY, GSM_Date_YYYYMMDD, GSM_Date_DDMMMYY,
  GSM_Date_MMDDYY, GSM_Date_DDMMYY, GSM_Date_YYMMDD, GSM_Date_OFF
}


Functions

GSM_Error GSM_GetLocale (GSM_StateMachine *s, GSM_Locale *locale)

GSM_Error GSM_SetLocale (GSM_StateMachine *s, GSM_Locale *locale)

GSM_Error GSM_GetSyncMLSettings (GSM_StateMachine *s, GSM_SyncMLSettings *settings)

GSM_Error GSM_SetSyncMLSettings (GSM_StateMachine *s, GSM_SyncMLSettings *settings)

GSM_Error GSM_GetChatSettings (GSM_StateMachine *s, GSM_ChatSettings *settings)

GSM_Error GSM_SetChatSettings (GSM_StateMachine *s, GSM_ChatSettings *settings)

GSM_Error GSM_GetMMSSettings (GSM_StateMachine *s, GSM_MultiWAPSettings *settings)

GSM_Error GSM_SetMMSSettings (GSM_StateMachine *s, GSM_MultiWAPSettings *settings)

GSM_Error GSM_SetAutoNetworkLogin (GSM_StateMachine *s)

GSM_Error GSM_Reset (GSM_StateMachine *s, gboolean hard)

GSM_Error GSM_ResetPhoneSettings (GSM_StateMachine *s, GSM_ResetSettingsType Type)

GSM_Error GSM_GetProfile (GSM_StateMachine *s, GSM_Profile *Profile)

GSM_Error GSM_SetProfile (GSM_StateMachine *s, GSM_Profile *Profile)

GSM_Error GSM_GetFMStation (GSM_StateMachine *s, GSM_FMStation *FMStation)

GSM_Error GSM_SetFMStation (GSM_StateMachine *s, GSM_FMStation *FMStation)

GSM_Error GSM_ClearFMStations (GSM_StateMachine *s)

GSM_Error GSM_GetGPRSAccessPoint (GSM_StateMachine *s, GSM_GPRSAccessPoint *point)

GSM_Error GSM_SetGPRSAccessPoint (GSM_StateMachine *s, GSM_GPRSAccessPoint *point)


Detailed Description

Author
Michal Čihař

Phone settings data and functions.

Definition in file gammu-settings.h.

Enumeration Type Documentation

§ GSM_DateFormat

enum GSM_DateFormat
Enumerator
GSM_Date_DDMMYYYY
GSM_Date_MMDDYYYY
GSM_Date_YYYYMMDD
GSM_Date_DDMMMYY
GSM_Date_MMDDYY
GSM_Date_DDMMYY
GSM_Date_YYMMDD
GSM_Date_OFF

Definition at line 156 of file gammu-settings.h.

156  {
157  GSM_Date_DDMMYYYY = 1,
158  GSM_Date_MMDDYYYY,
159  GSM_Date_YYYYMMDD,
160  GSM_Date_DDMMMYY,
161  GSM_Date_MMDDYY,
162  GSM_Date_DDMMYY,
163  GSM_Date_YYMMDD,
164  GSM_Date_OFF
165 } GSM_DateFormat;
GSM_DateFormat
GSM_DateFormat
Definition: gammu-settings.h:156

§ GSM_Profile_Feat_ID

enum GSM_Profile_Feat_ID
Enumerator
Profile_KeypadTone
Profile_CallAlert
Profile_RingtoneVolume
Profile_MessageTone
Profile_Vibration
Profile_WarningTone
Profile_AutoAnswer
Profile_Lights
Profile_ScreenSaverTime
Profile_ScreenSaver
Profile_ScreenSaverNumber
Profile_RingtoneID
Profile_MessageToneID
Profile_CallerGroups

Definition at line 97 of file gammu-settings.h.

97  {
98  Profile_KeypadTone = 1,
99  Profile_CallAlert,
100  Profile_RingtoneVolume,
101  Profile_MessageTone,
102  Profile_Vibration,
103  Profile_WarningTone,
104  Profile_AutoAnswer,
105  Profile_Lights,
106  Profile_ScreenSaverTime,
107  Profile_ScreenSaver,
108
109  Profile_ScreenSaverNumber,
110  Profile_RingtoneID,
111  Profile_MessageToneID,
112  Profile_CallerGroups
113 } GSM_Profile_Feat_ID;
GSM_Profile_Feat_ID
GSM_Profile_Feat_ID
Definition: gammu-settings.h:97

§ GSM_Profile_Feat_Value

enum GSM_Profile_Feat_Value
Enumerator
PROFILE_KEYPAD_LEVEL1
PROFILE_KEYPAD_LEVEL2
PROFILE_KEYPAD_LEVEL3
PROFILE_KEYPAD_OFF
PROFILE_CALLALERT_RINGING
PROFILE_CALLALERT_BEEPONCE
PROFILE_CALLALERT_OFF
PROFILE_CALLALERT_RINGONCE
PROFILE_CALLALERT_ASCENDING
PROFILE_CALLALERT_CALLERGROUPS
PROFILE_VOLUME_LEVEL1
PROFILE_VOLUME_LEVEL2
PROFILE_VOLUME_LEVEL3
PROFILE_VOLUME_LEVEL4
PROFILE_VOLUME_LEVEL5
PROFILE_MESSAGE_NOTONE
PROFILE_MESSAGE_STANDARD
PROFILE_MESSAGE_SPECIAL
PROFILE_MESSAGE_BEEPONCE
PROFILE_MESSAGE_ASCENDING
PROFILE_MESSAGE_PERSONAL
PROFILE_VIBRATION_OFF
PROFILE_VIBRATION_ON
PROFILE_VIBRATION_FIRST
PROFILE_WARNING_ON
PROFILE_WARNING_OFF
PROFILE_AUTOANSWER_ON
PROFILE_AUTOANSWER_OFF
PROFILE_LIGHTS_OFF
PROFILE_LIGHTS_AUTO
PROFILE_SAVER_ON
PROFILE_SAVER_OFF
PROFILE_SAVER_TIMEOUT_5SEC
PROFILE_SAVER_TIMEOUT_20SEC
PROFILE_SAVER_TIMEOUT_1MIN
PROFILE_SAVER_TIMEOUT_2MIN
PROFILE_SAVER_TIMEOUT_5MIN
PROFILE_SAVER_TIMEOUT_10MIN

Definition at line 56 of file gammu-settings.h.

56  {
57  PROFILE_KEYPAD_LEVEL1 = 1,
58  PROFILE_KEYPAD_LEVEL2,
59  PROFILE_KEYPAD_LEVEL3,
60  PROFILE_KEYPAD_OFF,
61  PROFILE_CALLALERT_RINGING,
62  PROFILE_CALLALERT_BEEPONCE,
63  PROFILE_CALLALERT_OFF,
64  PROFILE_CALLALERT_RINGONCE,
65  PROFILE_CALLALERT_ASCENDING,
66  PROFILE_CALLALERT_CALLERGROUPS,
67  PROFILE_VOLUME_LEVEL1,
68  PROFILE_VOLUME_LEVEL2,
69  PROFILE_VOLUME_LEVEL3,
70  PROFILE_VOLUME_LEVEL4,
71  PROFILE_VOLUME_LEVEL5,
72  PROFILE_MESSAGE_NOTONE,
73  PROFILE_MESSAGE_STANDARD,
74  PROFILE_MESSAGE_SPECIAL,
75  PROFILE_MESSAGE_BEEPONCE,
76  PROFILE_MESSAGE_ASCENDING,
77  PROFILE_MESSAGE_PERSONAL,
78  PROFILE_VIBRATION_OFF,
79  PROFILE_VIBRATION_ON,
80  PROFILE_VIBRATION_FIRST,
81  PROFILE_WARNING_ON,
82  PROFILE_WARNING_OFF,
83  PROFILE_AUTOANSWER_ON,
84  PROFILE_AUTOANSWER_OFF,
85  PROFILE_LIGHTS_OFF,
86  PROFILE_LIGHTS_AUTO,
87  PROFILE_SAVER_ON,
88  PROFILE_SAVER_OFF,
89  PROFILE_SAVER_TIMEOUT_5SEC,
90  PROFILE_SAVER_TIMEOUT_20SEC,
91  PROFILE_SAVER_TIMEOUT_1MIN,
92  PROFILE_SAVER_TIMEOUT_2MIN,
93  PROFILE_SAVER_TIMEOUT_5MIN,
94  PROFILE_SAVER_TIMEOUT_10MIN
95 } GSM_Profile_Feat_Value;
GSM_Profile_Feat_Value
GSM_Profile_Feat_Value
Definition: gammu-settings.h:56

§ GSM_ResetSettingsType

enum GSM_ResetSettingsType
Enumerator
GSM_RESET_PHONESETTINGS
GSM_RESET_USERINTERFACE
GSM_RESET_USERINTERFACE_PHONESETTINGS
GSM_RESET_DEVICE
GSM_RESET_FULLFACTORY

Definition at line 38 of file gammu-settings.h.

38  {
39  GSM_RESET_PHONESETTINGS = 1,
40  GSM_RESET_USERINTERFACE,
41  GSM_RESET_USERINTERFACE_PHONESETTINGS,
42  GSM_RESET_DEVICE,
43  GSM_RESET_FULLFACTORY
44 } GSM_ResetSettingsType;
GSM_ResetSettingsType
GSM_ResetSettingsType
Definition: gammu-settings.h:38

Function Documentation

§ GSM_ClearFMStations()

GSM_Error GSM_ClearFMStations ( GSM_StateMachine *  s)

Clears defined FM stations.

Definition at line 1685 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone_Functions::ClearFMStations, GSM_Phone::Functions, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1686 {
1687  GSM_Error err;
1688
1689  CHECK_PHONE_CONNECTION();
1690
1691  err = s->Phone.Functions->ClearFMStations(s);
1692  PRINT_LOG_ERROR(err);
1693  return err;
1694 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
GSM_Phone_Functions::ClearFMStations
GSM_Error(* ClearFMStations)(GSM_StateMachine *s)
Definition: gsmstate.h:1249

§ GSM_GetChatSettings()

GSM_Error GSM_GetChatSettings ( GSM_StateMachine *  s,
GSM_ChatSettings *  settings
)

Acquires chat/presence settings.

Definition at line 1209 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetChatSettings, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1210 {
1211  GSM_Error err;
1212
1213  CHECK_PHONE_CONNECTION();
1214
1215  err = s->Phone.Functions->GetChatSettings(s, settings);
1216  PRINT_LOG_ERROR(err);
1217  return err;
1218 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
GSM_Phone_Functions::GetChatSettings
GSM_Error(* GetChatSettings)(GSM_StateMachine *s, GSM_ChatSettings *settings)
Definition: gsmstate.h:1107
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_GetFMStation()

GSM_Error GSM_GetFMStation ( GSM_StateMachine *  s,
GSM_FMStation *  FMStation
)

Reads FM station.

Definition at line 1659 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetFMStation, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1660 {
1661  GSM_Error err;
1662
1663  CHECK_PHONE_CONNECTION();
1664
1665  err = s->Phone.Functions->GetFMStation(s, FMStation);
1666  PRINT_LOG_ERROR(err);
1667  return err;
1668 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
GSM_Phone_Functions::GetFMStation
GSM_Error(* GetFMStation)(GSM_StateMachine *s, GSM_FMStation *FMStation)
Definition: gsmstate.h:1241
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_GetGPRSAccessPoint()

GSM_Error GSM_GetGPRSAccessPoint ( GSM_StateMachine *  s,
GSM_GPRSAccessPoint *  point
)

Gets GPRS access point.

Definition at line 1843 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetGPRSAccessPoint, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1844 {
1845  GSM_Error err;
1846
1847  CHECK_PHONE_CONNECTION();
1848
1849  err = s->Phone.Functions->GetGPRSAccessPoint(s, point);
1850  PRINT_LOG_ERROR(err);
1851  return err;
1852 }
GSM_Phone_Functions::GetGPRSAccessPoint
GSM_Error(* GetGPRSAccessPoint)(GSM_StateMachine *s, GSM_GPRSAccessPoint *point)
Definition: gsmstate.h:1297
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_GetLocale()

GSM_Error GSM_GetLocale ( GSM_StateMachine *  s,
GSM_Locale *  locale
)

Gets locale from phone.

Definition at line 281 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetLocale, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

282 {
283  GSM_Error err;
284
285  CHECK_PHONE_CONNECTION();
286
287  err = s->Phone.Functions->GetLocale(s, locale);
288  PRINT_LOG_ERROR(err);
289  return err;
290 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
GSM_Phone_Functions::GetLocale
GSM_Error(* GetLocale)(GSM_StateMachine *s, GSM_Locale *locale)
Definition: gsmstate.h:830

§ GSM_GetMMSSettings()

GSM_Error GSM_GetMMSSettings ( GSM_StateMachine *  s,
GSM_MultiWAPSettings *  settings
)

Acquires MMS settings.

Definition at line 1235 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetMMSSettings, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1236 {
1237  GSM_Error err;
1238
1239  CHECK_PHONE_CONNECTION();
1240
1241  err = s->Phone.Functions->GetMMSSettings(s, settings);
1242  PRINT_LOG_ERROR(err);
1243  return err;
1244 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
GSM_Phone_Functions::GetMMSSettings
GSM_Error(* GetMMSSettings)(GSM_StateMachine *s, GSM_MultiWAPSettings *settings)
Definition: gsmstate.h:1115

§ GSM_GetProfile()

GSM_Error GSM_GetProfile ( GSM_StateMachine *  s,
GSM_Profile *  Profile
)

Reads profile.

Definition at line 1633 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetProfile, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1634 {
1635  GSM_Error err;
1636
1637  CHECK_PHONE_CONNECTION();
1638
1639  err = s->Phone.Functions->GetProfile(s, Profile);
1640  PRINT_LOG_ERROR(err);
1641  return err;
1642 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone_Functions::GetProfile
GSM_Error(* GetProfile)(GSM_StateMachine *s, GSM_Profile *Profile)
Definition: gsmstate.h:1233
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_GetSyncMLSettings()

GSM_Error GSM_GetSyncMLSettings ( GSM_StateMachine *  s,
GSM_SyncMLSettings *  settings
)

Acquires SyncML settings.

Definition at line 1183 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, GSM_Phone_Functions::GetSyncMLSettings, _GSM_StateMachine::Phone, and PRINT_LOG_ERROR.

1184 {
1185  GSM_Error err;
1186
1187  CHECK_PHONE_CONNECTION();
1188
1189  err = s->Phone.Functions->GetSyncMLSettings(s, settings);
1190  PRINT_LOG_ERROR(err);
1191  return err;
1192 }
GSM_Phone_Functions::GetSyncMLSettings
GSM_Error(* GetSyncMLSettings)(GSM_StateMachine *s, GSM_SyncMLSettings *settings)
Definition: gsmstate.h:1099
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_Reset()

GSM_Error GSM_Reset ( GSM_StateMachine *  s,
gboolean  hard
)

Performs phone reset.

Definition at line 333 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::Reset.

Referenced by GSM_WaitFor().

334 {
335  GSM_Error err;
336
337  CHECK_PHONE_CONNECTION();
338
339  err = s->Phone.Functions->Reset(s, hard);
340  PRINT_LOG_ERROR(err);
341  return err;
342 }
GSM_Phone_Functions::Reset
GSM_Error(* Reset)(GSM_StateMachine *s, gboolean hard)
Definition: gsmstate.h:842
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_ResetPhoneSettings()

GSM_Error GSM_ResetPhoneSettings ( GSM_StateMachine *  s,
GSM_ResetSettingsType  Type
)

Resets phone settings.

Definition at line 346 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::ResetPhoneSettings.

347 {
348  GSM_Error err;
349
350  CHECK_PHONE_CONNECTION();
351
352  err = s->Phone.Functions->ResetPhoneSettings(s, Type);
353  PRINT_LOG_ERROR(err);
354  return err;
355 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
GSM_Phone_Functions::ResetPhoneSettings
GSM_Error(* ResetPhoneSettings)(GSM_StateMachine *s, GSM_ResetSettingsType Type)
Definition: gsmstate.h:846

§ GSM_SetAutoNetworkLogin()

GSM_Error GSM_SetAutoNetworkLogin ( GSM_StateMachine *  s)

Enables network auto login.

Definition at line 398 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetAutoNetworkLogin.

399 {
400  GSM_Error err;
401
402  CHECK_PHONE_CONNECTION();
403
404  err = s->Phone.Functions->SetAutoNetworkLogin(s);
405  PRINT_LOG_ERROR(err);
406  return err;
407 }
GSM_Phone_Functions::SetAutoNetworkLogin
GSM_Error(* SetAutoNetworkLogin)(GSM_StateMachine *s)
Definition: gsmstate.h:862
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_SetChatSettings()

GSM_Error GSM_SetChatSettings ( GSM_StateMachine *  s,
GSM_ChatSettings *  settings
)

Changes chat/presence settings.

Definition at line 1222 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetChatSettings.

1223 {
1224  GSM_Error err;
1225
1226  CHECK_PHONE_CONNECTION();
1227
1228  err = s->Phone.Functions->SetChatSettings(s, settings);
1229  PRINT_LOG_ERROR(err);
1230  return err;
1231 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
GSM_Phone_Functions::SetChatSettings
GSM_Error(* SetChatSettings)(GSM_StateMachine *s, GSM_ChatSettings *settings)
Definition: gsmstate.h:1111

§ GSM_SetFMStation()

GSM_Error GSM_SetFMStation ( GSM_StateMachine *  s,
GSM_FMStation *  FMStation
)

Sets FM station.

Definition at line 1672 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetFMStation.

1673 {
1674  GSM_Error err;
1675
1676  CHECK_PHONE_CONNECTION();
1677
1678  err = s->Phone.Functions->SetFMStation(s, FMStation);
1679  PRINT_LOG_ERROR(err);
1680  return err;
1681 }
GSM_Phone_Functions::SetFMStation
GSM_Error(* SetFMStation)(GSM_StateMachine *s, GSM_FMStation *FMStation)
Definition: gsmstate.h:1245
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_SetGPRSAccessPoint()

GSM_Error GSM_SetGPRSAccessPoint ( GSM_StateMachine *  s,
GSM_GPRSAccessPoint *  point
)

Sets GPRS access point.

Definition at line 1856 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetGPRSAccessPoint.

1857 {
1858  GSM_Error err;
1859
1860  CHECK_PHONE_CONNECTION();
1861
1862  err = s->Phone.Functions->SetGPRSAccessPoint(s, point);
1863  PRINT_LOG_ERROR(err);
1864  return err;
1865 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
GSM_Phone_Functions::SetGPRSAccessPoint
GSM_Error(* SetGPRSAccessPoint)(GSM_StateMachine *s, GSM_GPRSAccessPoint *point)
Definition: gsmstate.h:1301
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_SetLocale()

GSM_Error GSM_SetLocale ( GSM_StateMachine *  s,
GSM_Locale *  locale
)

Sets locale of phone.

Definition at line 294 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetLocale.

295 {
296  GSM_Error err;
297
298  CHECK_PHONE_CONNECTION();
299
300  err = s->Phone.Functions->SetLocale(s, locale);
301  PRINT_LOG_ERROR(err);
302  return err;
303 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
GSM_Phone_Functions::SetLocale
GSM_Error(* SetLocale)(GSM_StateMachine *s, GSM_Locale *locale)
Definition: gsmstate.h:834
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_SetMMSSettings()

GSM_Error GSM_SetMMSSettings ( GSM_StateMachine *  s,
GSM_MultiWAPSettings *  settings
)

Changes MMS settings.

Definition at line 1248 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetMMSSettings.

1249 {
1250  GSM_Error err;
1251
1252  CHECK_PHONE_CONNECTION();
1253
1254  err = s->Phone.Functions->SetMMSSettings(s, settings);
1255  PRINT_LOG_ERROR(err);
1256  return err;
1257 }
GSM_Phone_Functions::SetMMSSettings
GSM_Error(* SetMMSSettings)(GSM_StateMachine *s, GSM_MultiWAPSettings *settings)
Definition: gsmstate.h:1119
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373

§ GSM_SetProfile()

GSM_Error GSM_SetProfile ( GSM_StateMachine *  s,
GSM_Profile *  Profile
)

Updates profile.

Definition at line 1646 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetProfile.

1647 {
1648  GSM_Error err;
1649
1650  CHECK_PHONE_CONNECTION();
1651
1652  err = s->Phone.Functions->SetProfile(s, Profile);
1653  PRINT_LOG_ERROR(err);
1654  return err;
1655 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
GSM_Phone_Functions::SetProfile
GSM_Error(* SetProfile)(GSM_StateMachine *s, GSM_Profile *Profile)
Definition: gsmstate.h:1237

§ GSM_SetSyncMLSettings()

GSM_Error GSM_SetSyncMLSettings ( GSM_StateMachine *  s,
GSM_SyncMLSettings *  settings
)

Changes SyncML settings.

Definition at line 1196 of file api.c.

References CHECK_PHONE_CONNECTION, GSM_Phone::Functions, _GSM_StateMachine::Phone, PRINT_LOG_ERROR, and GSM_Phone_Functions::SetSyncMLSettings.

1197 {
1198  GSM_Error err;
1199
1200  CHECK_PHONE_CONNECTION();
1201
1202  err = s->Phone.Functions->SetSyncMLSettings(s, settings);
1203  PRINT_LOG_ERROR(err);
1204  return err;
1205 }
GSM_Error
GSM_Error
Definition: gammu-error.h:23
GSM_Phone_Functions::SetSyncMLSettings
GSM_Error(* SetSyncMLSettings)(GSM_StateMachine *s, GSM_SyncMLSettings *settings)
Definition: gsmstate.h:1103
_GSM_StateMachine::Phone
GSM_Phone Phone
Definition: gsmstate.h:1431
PRINT_LOG_ERROR
#define PRINT_LOG_ERROR(err)
Definition: api.c:28
CHECK_PHONE_CONNECTION
#define CHECK_PHONE_CONNECTION()
Definition: api.c:38
GSM_Phone::Functions
GSM_Phone_Functions * Functions
Definition: gsmstate.h:1373
