gammu-statemachine.h File Reference

#include <gammu-types.h>
#include <gammu-error.h>
#include <gammu-inifile.h>
#include <gammu-info.h>

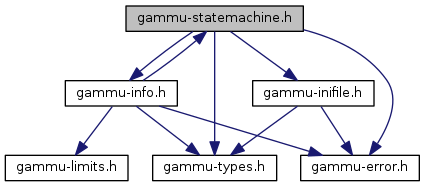

Include dependency graph for gammu-statemachine.h:

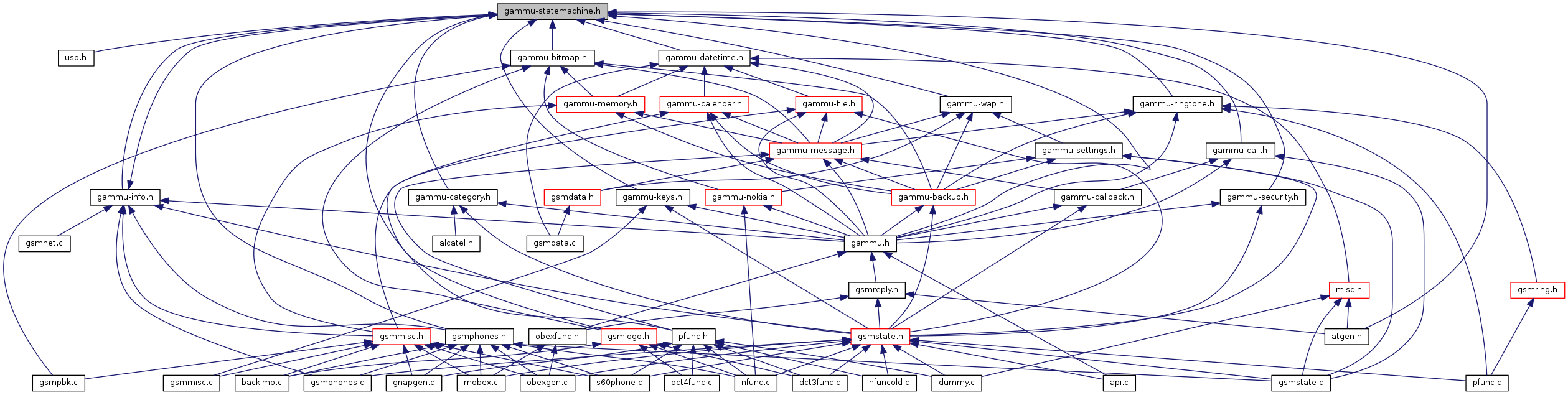

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	GSM_Config

Typedefs
typedef void(*	GSM_Log_Function) (const char *text, void *data)
typedef struct _GSM_StateMachine	GSM_StateMachine

Enumerations
enum	GSM_ConnectionType {   GCT_MBUS2 = 1, GCT_FBUS2, GCT_FBUS2DLR3, GCT_DKU2AT,   GCT_DKU2PHONET, GCT_DKU5FBUS2, GCT_ARK3116FBUS2, GCT_FBUS2PL2303,   GCT_FBUS2BLUE, GCT_FBUS2IRDA, GCT_PHONETBLUE, GCT_AT,   GCT_BLUEGNAPBUS, GCT_IRDAOBEX, GCT_IRDAGNAPBUS, GCT_IRDAAT,   GCT_IRDAPHONET, GCT_BLUEFBUS2, GCT_BLUEAT, GCT_BLUEPHONET,   GCT_BLUEOBEX, GCT_FBUS2USB, GCT_BLUES60, GCT_PROXYGNAPBUS,   GCT_PROXYFBUS2, GCT_PROXYAT, GCT_PROXYPHONET, GCT_PROXYOBEX,   GCT_PROXYS60, GCT_NONE }

Functions
GSM_Error	GSM_InitConnection_Log (GSM_StateMachine *s, int ReplyNum, GSM_Log_Function log_function, void *user_data)
GSM_Error	GSM_InitConnection (GSM_StateMachine *s, int ReplyNum)
GSM_Error	GSM_TerminateConnection (GSM_StateMachine *s)
GSM_Error	GSM_AbortOperation (GSM_StateMachine *s)
int	GSM_ReadDevice (GSM_StateMachine *s, gboolean waitforreply)
gboolean	GSM_IsConnected (GSM_StateMachine *s)
GSM_Error	GSM_FindGammuRC (INI_Section **result, const char *force_config)
GSM_Error	GSM_ReadConfig (INI_Section *cfg_info, GSM_Config *cfg, int num)
GSM_Config *	GSM_GetConfig (GSM_StateMachine *s, int num)
int	GSM_GetConfigNum (const GSM_StateMachine *s)
void	GSM_SetConfigNum (GSM_StateMachine *s, int sections)
GSM_StateMachine *	GSM_AllocStateMachine (void)
void	GSM_FreeStateMachine (GSM_StateMachine *s)
GSM_ConnectionType	GSM_GetUsedConnection (GSM_StateMachine *s)
GSM_Error	GSM_Install (GSM_StateMachine *s, const char *ExtraPath, gboolean Minimal)

Detailed Description

Author

Michal Čihař

State machine data.

Definition in file gammu-statemachine.h.

Typedef Documentation

GSM_Log_Function

typedef void(* GSM_Log_Function) (const char *text, void *data)

Callback function for logging.

Parameters

text	Text to be printed, will be also sent (as a separate message).
data	Arbitrary logger data, as passed to GSM_InitConnection_Log.

Definition at line 31 of file gammu-statemachine.h.

Enumeration Type Documentation

GSM_ConnectionType

enum GSM_ConnectionType

Connection types definitions.

Enumerator
GCT_MBUS2
GCT_FBUS2
GCT_FBUS2DLR3
GCT_DKU2AT
GCT_DKU2PHONET
GCT_DKU5FBUS2
GCT_ARK3116FBUS2
GCT_FBUS2PL2303
GCT_FBUS2BLUE
GCT_FBUS2IRDA
GCT_PHONETBLUE
GCT_AT
GCT_BLUEGNAPBUS
GCT_IRDAOBEX
GCT_IRDAGNAPBUS
GCT_IRDAAT
GCT_IRDAPHONET
GCT_BLUEFBUS2
GCT_BLUEAT
GCT_BLUEPHONET
GCT_BLUEOBEX
GCT_FBUS2USB
GCT_BLUES60
GCT_PROXYGNAPBUS
GCT_PROXYFBUS2
GCT_PROXYAT
GCT_PROXYPHONET
GCT_PROXYOBEX
GCT_PROXYS60
GCT_NONE

Definition at line 115 of file gammu-statemachine.h.

             {
        GCT_MBUS2 = 1,
        GCT_FBUS2,
        GCT_FBUS2DLR3,
        GCT_DKU2AT,
        GCT_DKU2PHONET,
        GCT_DKU5FBUS2,
        GCT_ARK3116FBUS2,
        GCT_FBUS2PL2303,
        GCT_FBUS2BLUE,
        GCT_FBUS2IRDA,
        GCT_PHONETBLUE,
        GCT_AT,
        GCT_BLUEGNAPBUS,
        GCT_IRDAOBEX,
        GCT_IRDAGNAPBUS,
        GCT_IRDAAT,
        GCT_IRDAPHONET,
        GCT_BLUEFBUS2,
        GCT_BLUEAT,
        GCT_BLUEPHONET,
        GCT_BLUEOBEX,
        GCT_FBUS2USB,
        GCT_BLUES60,
        GCT_PROXYGNAPBUS,
        GCT_PROXYFBUS2,
        GCT_PROXYAT,
        GCT_PROXYPHONET,
        GCT_PROXYOBEX,
        GCT_PROXYS60,
        GCT_NONE
} GSM_ConnectionType;
