gsmstate.h File Reference

#include <time.h>
#include <gammu-file.h>
#include <gammu-info.h>
#include <gammu-config.h>
#include <gammu-keys.h>
#include <gammu-security.h>
#include <gammu-callback.h>
#include <gammu-settings.h>
#include <gammu-misc.h>
#include <gammu-category.h>
#include <gammu-backup.h>
#include <string.h>
#include "phone/dummy/dummy.h"
#include "protocol/protocol.h"
#include "device/proxy/proxy.h"
#include "debug.h"
#include "gsmreply.h"

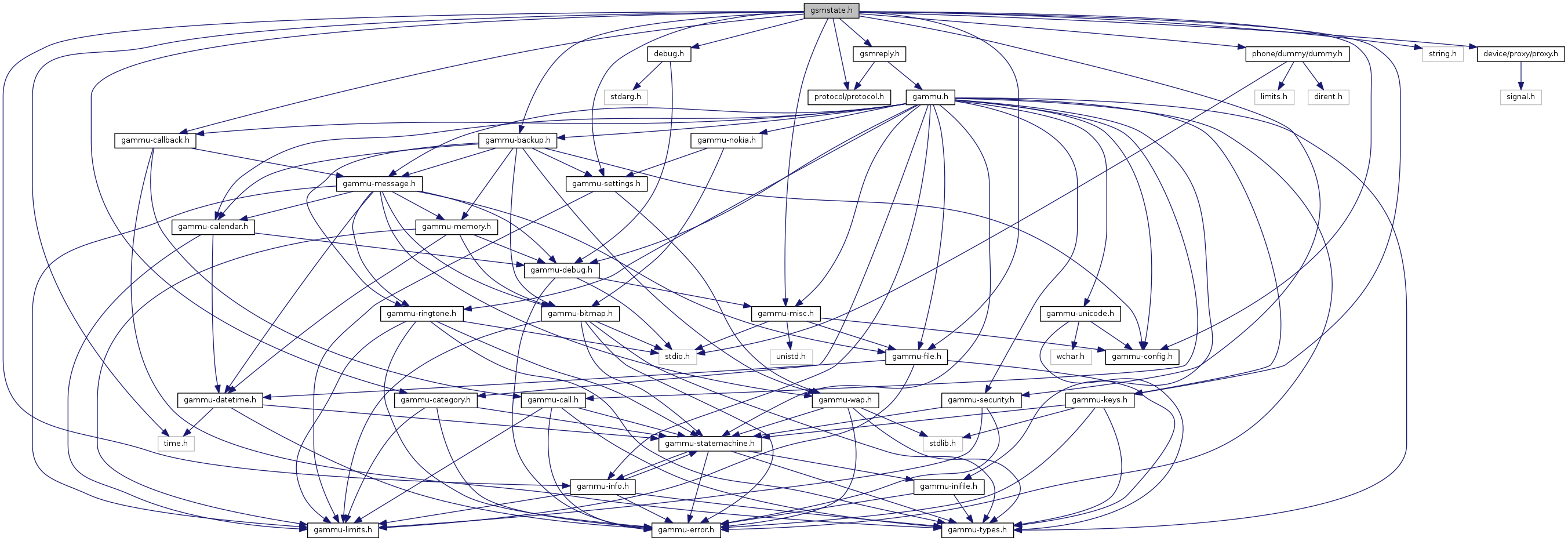

Include dependency graph for gsmstate.h:

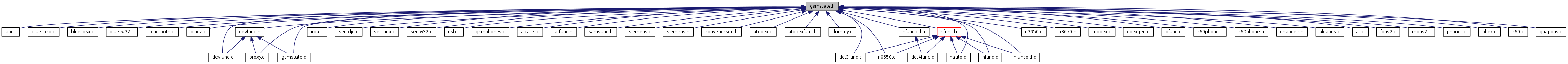

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	GSM_Device_Functions
struct	GSM_Device
struct	GSM_Protocol_Functions
struct	GSM_Protocol
struct	GSM_Phone_Data
struct	GSM_Phone_Functions
struct	GSM_Phone
struct	_GSM_User
struct	_GSM_StateMachine

Macros
#define	GSM_ENABLE_SERIALDEVICE
#define	GSM_ENABLE_IRDADEVICE
#define	MAX_CONFIG_NUM   5
#define	GSM_WaitForAutoLen(s, buffer, type, timeout, request)   GSM_WaitFor(s,buffer,strlen(buffer),type,timeout,request)

Typedefs
typedef struct _GSM_User	GSM_User

Functions
GSM_Error	GSM_RegisterAllPhoneModules (GSM_StateMachine *s)
GSM_Error	GSM_WaitForOnce (GSM_StateMachine *s, unsigned const char *buffer, size_t length, int type, int timeout)
GSM_Error	GSM_WaitFor (GSM_StateMachine *s, unsigned const char *buffer, size_t length, int type, int timeout, GSM_Phone_RequestID request) WARNUNUSED
GSM_Error	GSM_DispatchMessage (GSM_StateMachine *s)
void	GSM_DumpMessageText (GSM_StateMachine *s, unsigned const char *message, size_t messagesize, int type)
void	GSM_DumpMessageTextRecv (GSM_StateMachine *s, unsigned const char *message, size_t messagesize, int type)
void	GSM_DumpMessageBinary (GSM_StateMachine *s, unsigned const char *message, size_t messagesize, int type)
void	GSM_DumpMessageBinaryRecv (GSM_StateMachine *s, unsigned const char *message, size_t messagesize, int type)
void	GSM_OSErrorInfo (GSM_StateMachine *s, const char *description)

Variables
GSM_Device_Functions	ProxyDevice
GSM_Phone_Functions	NAUTOPhone
GSM_Phone_Functions	DUMMYPhone

Detailed Description

Author

Michal Čihař

Marcin Wiacek

Definition in file gsmstate.h.
